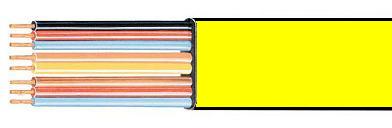

CONSTRUCTION | |
Conductor: | - Soft-drawn uncoated copper |
Insulation: | - Color-coded, flame- and oil-resistant PVC |
Jacket: | - Yellow flame- and oil-resistant PVC |
Applications:
- Primarily designed for use with festoon systems for the conveyance of electrical power and control to cranes, hoists, or any other equipment which travels with a lateral traversing motion
- Suitable for indoor or outdoor applications
Standards:
- Suitable for indoor or outdoor applications
- ASTM B-3
- ASTM B-172
- UL-62
- CSA 1447
- CSA FT-1
- UL VW-1
- ASTM B-172
- UL-62
- CSA 1447
- CSA FT-1
- UL VW-1
Part # | AWG Size | Num. of Cond. | Stranding | Nom. Insul. Thick. | Nom. O.D. | AMPS | Lbs./M’ |
1FC10604 | 6 | 4 | 259/30 | .060” | .450” x 1.500” | 82 | 635 |
1FC10804 | 8 | 4 | 168/30 | .045” | .375” x 1.225” | 60 | 401 |
1FC11004 | 10 | 4 | 105/30 | .030” | .290” x .890” | 44 | 239 |
1FC11204 | 12 | 4 | 65/30 | .030” | .260” x .800” | 33 | 180 |
1FC11208 | 12 | 8 | 65/30 | .030” | .260” x 1.44” | 23 | 343 |
1FC11404 | 14 | 4 | 105/34 | .030” | .240” x .690” | 27 | 138 |
1FC11408 | 14 | 8 | 105/34 | .030” | .240” x 1.29” | 19 | 254 |
1FC11412 | 14 | 12 | 105/34 | .030” | .240” x 1.82” | 19 | 380 |
FC11608 | 16 | 8 | 65/34 | .030” | .225” x 1.17” | 14 | 194 |
1FC11612 | 16 | 12 | 65/34 | .030” | .225” x 1.70” | 14 | 292 |
